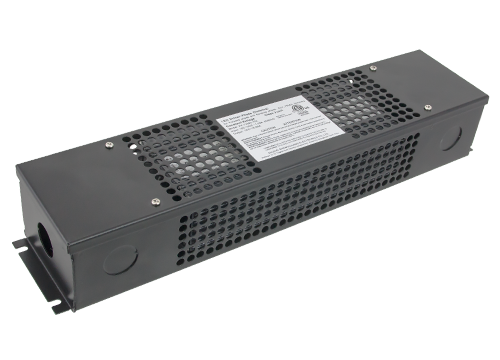

The 60W ELV series feature cETLus Listing with high reliability and Class II rating. Standard built-in protections include short circuit, over-current, and over temperature. ELV drivers can be used in dimming applications with a 60% minimum load is applied, or in non-dimming applications with a 1W minimum load. Metal enclosure features ventilation perforations and three 1/2" knockouts on both input and output ends.
• 12V or 24V DC Constant voltage hardwire 60W LED driver
• Dimmable with MLV, ELV, & Incandescent TRIAC dimmers (36W min. load)
• Forward phase & reverse phase compatible
• Short circuit, over-load, and over temperature protections

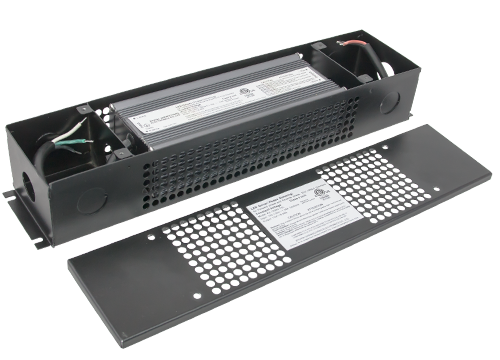

• Includes metal driver housing with 1/2" knockouts
• Class II / cETLus Listed - IP66 Wet location rated (wire terminations must be sealed)
ORDERING & ACCESSORIES
ELV-60J-12
ELV-60J-24
12V - 60W ELV Driver (36W min. load - Dimming)
24V - 60W ELV Driver (36W min. load - Dimming)
Item Number
Description
