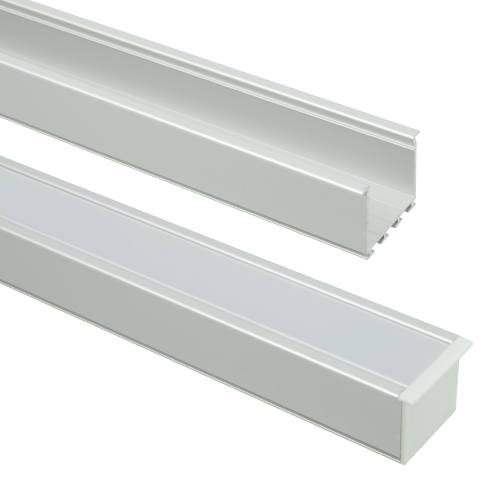

For seamless lines of light that blends directly into the wall or substrate, the mini flange channel is a premium solution for applications where modern clean lines of light are a must. Simply pre-install dedicated housing slots during new construction drywalling phase and snap in the finished channel and lens . Once completed, all you are left with is a stunning line of light incorporated into the wall or substrate.
• Recessed channel mount extrusion best suited for drywall and ceiling applications
• Double anodized aluminum provides excellent heat dissipation
• Lens protects lights source while evenly diffusing light
• Frosted lens and end cap accessories available
• Field cuttable 2M (78.75") channel, housing, and lens
• Compatible with most 10-12mm wide tape light
ORDERING & ACCESSORIES
PE-SLOT-2M
PE-SLOT-CLIP
PE-SLOT-END
PE-SLOTLENS-2M
PE-D.5-2M
PE-D.6-2M
PE-FC-END
2M - Mini Flange Insert
Mini Flange Slot Clips (Required)
Mini Flange End Cap
2M - Frosted Polycarbonate Lens
2M - 1/2" Rough In Channel Housing
2M - 5/8" Rough In Channel Housing
Rough In Channel End Cap
Item Number
Description
