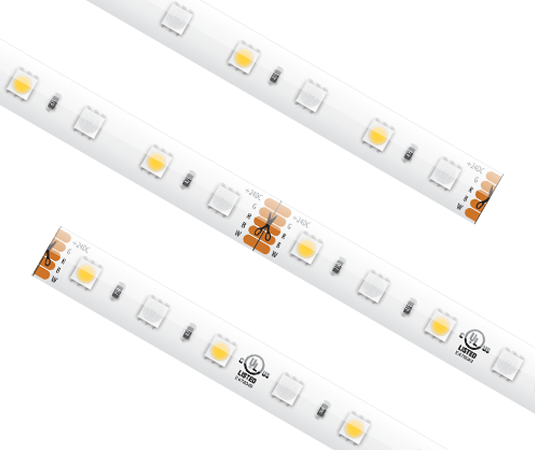

RGBW SERIES
Alternating 3-in-1 LEDs with 3000K warm white LEDs provide a dynamic color range that extends past traditional RGB. RGBW lighting combines RGB with white color mixing to create millions of color possibilities while maintaining even greater brightness and overall color saturation.
• Dynamic RGB + 3000K warm white color blending
• Create millions of color combinations perfect for impactful installations
• Excellent color rending (94+ CRI)
• Consumes up to 4.4 watts per foot
• Control via DMX for color change and dimming (requires DMX receiver)
• Run lengths up to 22 feet and cuttable every 6.56"
QUICK SPECS
Series
Voltage
CCT
CRI
Wattage
Lumens
Max Run
Cuttable
IP Rating
Dimmable
Rating
Rated Life
TLH-RGBW
24V
RGB + 3000K
94+
4.4W per ft
Up to 240Lm per ft
22ft
Every 6.56"
IP54 (unjacketed) / IP65 (jacketed)
(5-100%) with most DMX RGB Controls
cULus Listed
50,000 hrs
ACCESSORIES
TL-5PWR
TL-5SPL
TL-5JUMP-.5
TL-5JUMP-1
TL-5JUMP-2
TL-5JUMP65-.5
TL-5JUMP65-1
TL-5JUMP65-2
Power Feed Snap Connector
Splice Connector
6" Linking Cable (IP54)
12" Linking Cable (IP54)
24" Linking Cable (IP54)
6" Linking Cable (IP65)
12" Linking Cable (IP65)
24" Linking Cable (IP65)
Item Number
Description
IES / PHOTOMETRICS
Please contact factory for additional information
RESOURCES
RGBW QUICK SPECS
0.64" LED Spacing
Alternating RGB & 3000K LEDS
Cuttable every 6.56"
IP54 Rating
12mm (0.46") Wide
QUICK SHIP
Cuttable
6.56"
6.56"
Max Run
22 ft
22 ft
Voltage
24V
24V
IP Rating
(IP54) Dry / Damp
(IP65) Wet
Lumens
240Lm/ft
240Lm/ft
Wattage
4.6W/ft
4.6W/ft
Length
16.4 ft
16.4 ft
Item Number
PZM-TLH-54-24V-RGBW-16
PZM-TLH-65-24V-RGBW-16
CRI
94+
94+
Color
RGBW
RGBW
For custom cut options or special orders, please contact us at: Quotes@PrizmLighting.com
