TLH - SUBMERSIBLE RGB
For water features or wet location applications, the TLH Submersible RGB tape is a highly sought after solution. With an IP68 outdoor submersible rating, our submersible tape can withstand most natural elements and can be field cut making for a great go to for small ponds and fountain lighting solutions.
• Dynamic RGB color changing submersible tape light
• Create millions of color combinations perfect for impactful installations
• IP68 submersible rating allows for water feature applications
• Consumes up to 4.6 watts per foot
• Control via DMX for color change and dimming (requires DMX receiver)
• Run lengths up to 16.4 feet and cuttable every 3.94" (must be properly sealed)
QUICK SPECS
Series
Voltage
CCT
CRI
Wattage
Max Run
Cuttable
IP Rating
Dimmable
Rating
Rated Life
TLH-Submersible
24V
3000K / 4000K
94+
4.6W per ft
16.4ft
**Every 3.94"**
IP68 (Submersible)
(5-100%) with most DMX RGB Controls
cULus Listed
50,000 hrs
ACCESSORIES
TL-4JUMP68-10
TL-4JUMP68-20
TL-CLIPS-15
10ft IP68 Extension Cable (RGB)
20ft IP68 Extension Cable (RGB)
Silicone Mounting Clips (Qty of 15)
Item Number
Description
IES / PHOTOMETRICS
Please contact factory for additional information
RESOURCES

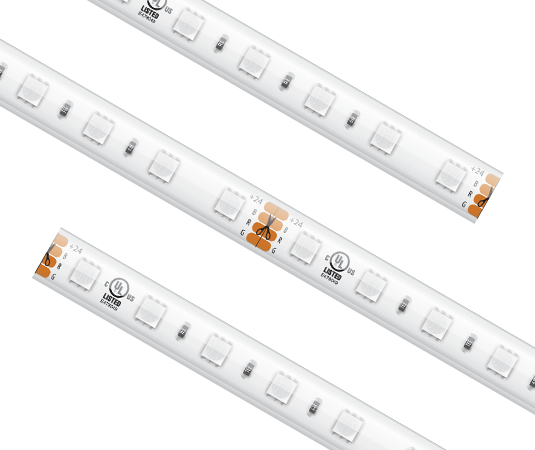

TLH-SUBMERSIBLE QUICK SPECS
3-in-1 RGB LEDs
0.63" LED Spacing
** Cuttable every 3.94" **
IP68 Submersible Rating
12.5mm (0.49") Wide
QUICK SHIP
**Cuttable**
3.94"
Max Run
16.4 ft
Voltage
24V
IP Rating
(IP68) Submersible)
Lumens
N/A
Wattage
4.6W/ft
Length
16.4 ft
Item Number
PZM-TLH-68-24V-RGB-16
CRI
94+
Color
RGB
**Field Cuttable (once per reel) - Must be sealed with IP68 end caps and silicone**
For custom cut options or special orders, please contact us at: Quotes@PrizmLighting.com
