A6 ARRAY SERIES

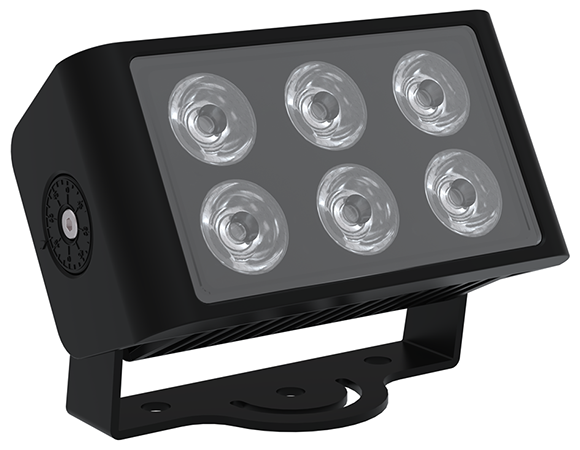

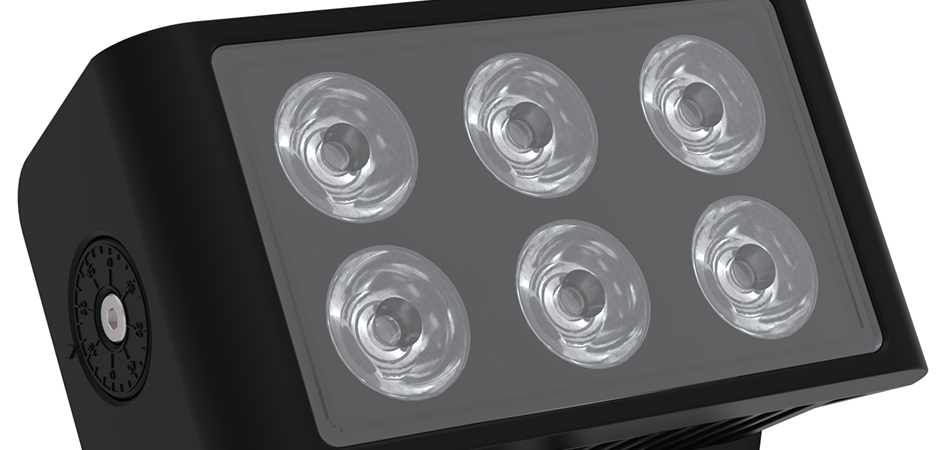

The Sēnik A6 Array is the smallest of the array series and is a cost-effective LED flood lighting solution for interior or exterior use. The small but powerful A6 is ideal for dynamic flood, wash, and accent lighting effects. With multiple optics and color options, make a statement with the Sēnik Array series perfect for any application.
• Voltage input: 100-240V AC, 50/60Hz
• Ranging from 1150-2150 lumens per fixture performance
• CCT & Color range: 3000K, RGB, RGBW

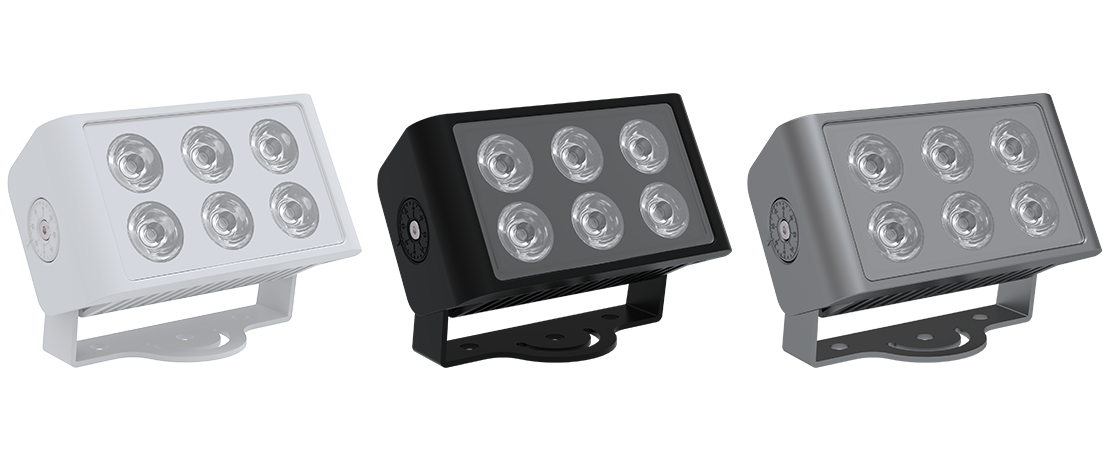

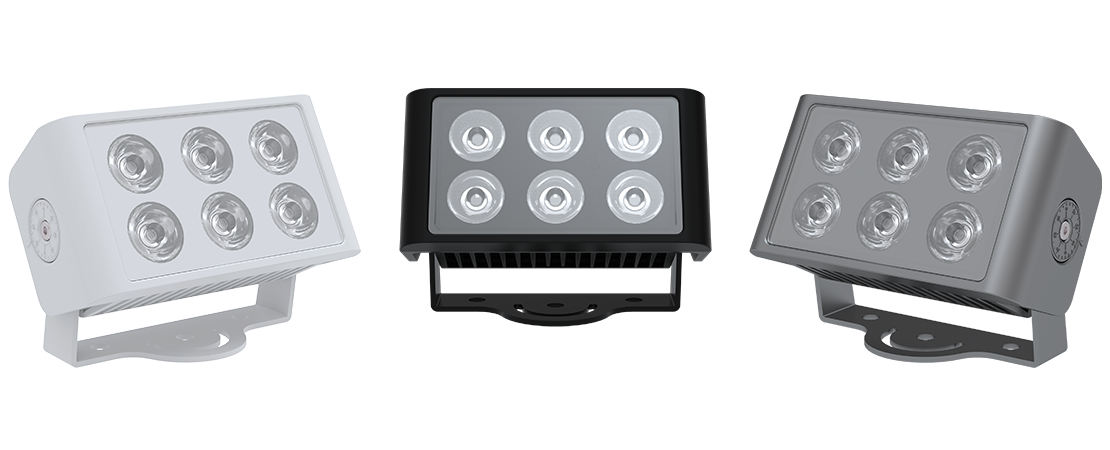

• Finish options: Black / White / Silver
• Smooth full range dimming capabilities (0-100%)
• 180° Swivel adjustment capable
• Linkable up to 17 units (Max signal linking: 30 fixtures)
• Data protocol: DMX 512 (RDM required for fixture addressing)
• 40° optics (Standard) / 25° Optics (Special Order)
QUICK SPECS
Series
Voltage
CCT Options
Wattage
Lumens
Max Run
Dimmable
IP Rating
Dimmable
Net Weight
Rating
Rated Life
SENIK A6
100-240V AC, 50/60Hz
3000K / RGB / RGBW
31W per fixture
1150-2150Lm
17 Units (30 max signal linking)
0-100%
IP65 (Outdoor rated)
40° Optics (Standard) / 25° optics (Special Order)
2.56Kg (5.65Lbs)
cETLus Listed
50,000 Hours
ACCESSORIES
PZM-WW-PSL-BK
PZM-WW-XLR3-10-BK
PZM-WW-XLR3-XLR5
PZM-WW-SIGEND-BK
PZM-WW-PCLMP
Power + Signal Lead Wire (3 pin signal)
10ft XLR3 Signal Extension (3 pin)
XLR3 to XLR5 Adapter
Signal Termination End
Pole Clamp
Item Number
Description
RECOMMENDED CONTROLLERS
STICK-CU4
DMX-1Z-3P
DMX-3Z
Premium DMX Contoller (36 scenes / Single Zone)
Standard DMX Controller (3 scenes / Single Zone)
Standard DMX Controller (1 scene / 3 Zones)
Item Number
Description
REVIT / IES / PHOTOMETRICS
Please contact factory for additional information
RESOURCES
CCT OPTIONS:
3000K
RGB
RGBW
