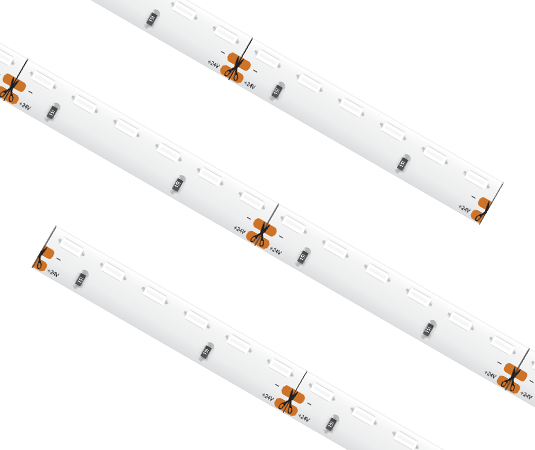

TLE - EDGE LIT SERIES
The Edge-lit series is a great grazing tool, whether it be for columns, back bars,
reception areas or niches. Cast warm white light onto surfaces, bending around obstacles and corners easily and seamlessly thanks in part to its extremely low profile making for a great solution to installs with limited back lighting space.
• Edge-lit design perfect for installations requiring side emitting light source
• Color temperature available in 3000K
• 155 lumens per foot performance
• Consuming up to 2.93 watts per foot
• Dimmable with most electronic low voltage (ELV) dimmers
• Run lengths up to 16.4 feet and cuttable every 1.97"
QUICK SPECS
Series
Voltage
CCT
CRI
Wattage
Lumens
Max Run
Cuttable
IP Rating
Dimmable
Rating
Rated Life
TLE
24V
3000K
94+
2.93W per ft
Up to 260Lm per ft
22ft
Every 1.97"
IP54 (unjacketed)
(5-100%) with most dimmers
cULus Listed
50,000 hrs
IES / PHOTOMETRICS
Please contact factory for additional information
RESOURCES
TLE-SERIES QUICK SPECS
80+ CRI LEDs
0.31" LED Spacing
Side Emitting LEDs
Cuttable every 1.97"
IP54 Rating
8mm (0.31") Wide
QUICK SHIP
Cuttable
1.97"
Max Run
16.4 ft
Voltage
24V
IP Rating
(IP54) Dry / Damp
Lumens
155Lm/ft
Wattage
2.93W/ft
Length
16.4 ft
Item Number
PZM-TLE-54-24V-30K-16
CRI
90+
Color Temperature
3000K
For custom cut options or special orders, please contact us at: Quotes@PrizmLighting.com
