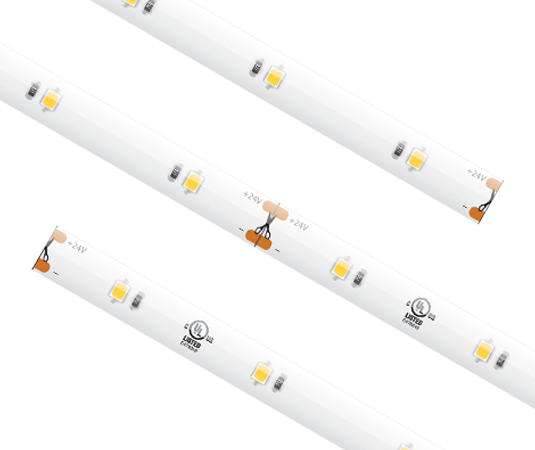

TLS - STANDARD GRADE
Build an economical and versatile layered lighting system with TLS-Series tape light. Light output ranging from 140-155 lumens per foot, with easy to work with run lengths up to 32.8 feet, TLS Standard Grade is perfect for accent lighting applications when soft and subtle lighting is desired.
• Excellent color rendering (96+ CRI)
• 100-155 lumens per foot performance
• Consuming only 2.19 watts per foot
• Dimmable with most electronic low voltage (ELV) dimmers
• Run lengths up to 32.8 feet (24V) and 27 feet (12V)
• Available in (IP54) unjacketed and (IP65) jacketed versions
QUICK SPECS
Series
Voltage
CCT
CRI
Wattage
Lumens
Max Run
Cuttable
IP Rating
Dimmable
Rating
Rated Life
TLS
12V / 24V
2400K / 2700K / 3000K / 4000K
96+
2.19W per ft
Up to 155Lm per ft
32.8ft (24V) / 27ft (12V)
Every 6.56" (24V) / 3.94" (12V)
IP54 (unjacketed) / IP65 (jacketed)
(5-100%) with most dimmers
cULus Listed
50,000 hrs
ACCESSORIES
TL-CONKIT
TL-BLKS
TL-2SPL
TL-2L
TL-2T
TL-2X
TL-2JUMP-.5
TL-2JUMP-1
TL-2JUMP-2
TL-2JUMP65-.5
TL-2JUMP65-1
TL-2JUMP65-2
TL-2DC
Trulink 4-in-1 Connector Power Feed
Trulink 4-in-1 Connector Block
Splice Connector
L - Snap Connector
T - Snap Connector
X - Snap Connector
6" Linking Cable (IP54)
12" Linking Cable (IP54)
24" Linking Cable (IP54)
6" Linking Cable (IP65)
12" Linking Cable (IP65)
24" Linking Cable (IP65)
Snap Connector to DC Jack
Item Number
Description
IES / PHOTOMETRICS
Please contact factory for additional information
RESOURCES
TLS-SERIES QUICK SPECS
96+ CRI LEDs
1.30" LED Spacing
Cuttable every 6.56" (24V) / 3.94" (12V)
IP54 & IP65 Options
10mm (0.39") Wide
QUICK SHIP
Cuttable
6.56"
6.56"
6.56"
6.56"
6.56"
6.56"
6.56"
6.56"
6.56"
6.56"
6.56"
3.94"
6.56"
6.56"
6.56"
Max Run
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
32.8 ft
27 ft
32.8 ft
32.8 ft
32.8 ft
Voltage
24V
24V
24V
24V
24V
24V
24V
24V
24V
24V
24V
12V
24V
24V
24V
IP Rating
(IP54) Dry / Damp
(IP65) Wet
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP65) Wet
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP65) Wet
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP65) Wet
(IP54) Dry / Damp
Lumens
140Lm/ft
100Lm/ft
140Lm/ft
146Lm/ft
105Lm/ft
146Lm/ft
146Lm/ft
150Lm/ft
115Lm/f/ft
150Lm/ft
150Lm/ft
150Lm/ft
155Lm/ft
125Lm/ft
155Lm/ft
Wattage
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
2.7W/ft
Length
16.4 ft
16.4 ft
32.8 ft
16.4 ft
16.4 ft
32.8 ft
100 ft
16.4 ft
16.4 ft
32.8 ft
100 ft
100 ft
16.4 ft
16.4 ft
32.8 ft
Item Number
PZM-TLS-54-24V-24K-16
PZM-TLS-65-24V-24K-16
PZM-TLS-54-24V-24K-32
PZM-TLS-54-24V-27K-16
PZM-TLS-65-24V-27K-16
PZM-TLS-54-24V-27K-32
PZM-TLS-54-24V-27K-100
PZM-TLS-54-24V-30K-16
PZM-TLS-65-24V-30K-16
PZM-TLS-54-24V-30K-32
PZM-TLS-54-24V-30K-100
PZM-TLS-54-12V-30K-100
PZM-TLS-54-24V-40K-16
PZM-TLS-65-24V-40K-16
PZM-TLS-54-24V-40K-32
CRI
94+
94+
94+
94+
94+
94+
94+
94+
94+
94+
94+
94+
94+
94+
94+
Color Temperature
2400K
2400K
2400K
2700K
2700K
2700K
2700K
3000K
3000K
3000K
3000K
3000K
4000K
4000K
4000K
For custom cut options or special orders, please contact us at: Quotes@PrizmLighting.com
