TLM - MAX RUN

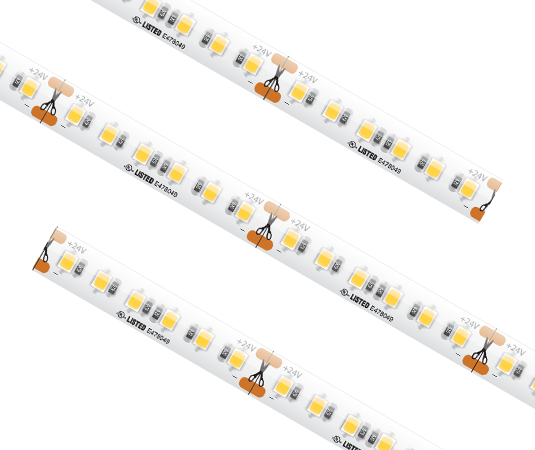

For large scale projects, the Max Run series provides a more convenient installation by minimizing drivers and connections. TLM Max Run tape is a great tool for lighting coves, corridors, lobbies, and retail spaces featuring a max run length up to 65 feet and available in 2700K, 3000K, and 4000K popular color temperatures.
• Excellent color rendering (90+ CRI)
• Color temperatures available from 2400K to 4000K
• 108-112 lumens per foot performance
• Consuming up to 1.47 watts per foot
• Dimmable with most electronic low voltage (ELV) dimmers
• Run lengths up to 65.6 feet and cuttable every 1.97"
QUICK SPECS
Series
Voltage
CCT
CRI
Wattage
Lumens
Max Run
Cuttable
IP Rating
Dimmable
Rating
Rated Life
TLM
24V
2400K / 2700K / 3000K / 4000K
90+
1.47W per ft
Up to 112Lm per ft
65.6ft
Every 1.97"
IP54 (unjacketed)
(5-100%) with most dimmers
cULus Listed
50,000 hrs
ACCESSORIES
TL-CONKIT
TL-BLKS
TL-2SPL
TL-2L
TL-2T
TL-2X
TL-2JUMP-.5
TL-2JUMP-1
TL-2JUMP-2
TL-2JUMP65-.5
TL-2JUMP65-1
TL-2JUMP65-2
TL-2DC
Trulink 4-in-1 Connector Power Feed
Trulink 4-in-1 Connector Block
Splice Connector
L - Snap Connector
T - Snap Connector
X - Snap Connector
6" Linking Cable (IP54)
12" Linking Cable (IP54)
24" Linking Cable (IP54)
6" Linking Cable (IP65)
12" Linking Cable (IP65)
24" Linking Cable (IP65)
Snap Connector to DC Jack
Item Number
Description
IES / PHOTOMETRICS
Please contact factory for additional information
RESOURCES
TLM-SERIES QUICK SPECS
90+ CRI LEDs
0.33" LED Spacing
Cuttable every 1.97"
IP54 & IP65 Options
10mm (0.39") Wide
QUICK SHIP
Cuttable
1.97"
1.97"
1.97"
Max Run
65.6 ft
65.6 ft
65.6 ft
Voltage
24V
24V
24V
IP Rating
(IP54) Dry / Damp
(IP54) Dry / Damp
(IP54) Dry / Damp
Lumens
118Lm/ft
120Lm/ft
121Lm/ft
Wattage
1.46W/ft
1.46W/ft
1.46W/ft
Length
65.6 ft
65.6 ft
65.6 ft
Item Number
PZM-TLM-54-24V-27K-65
PZM-TLM-54-24V-30K-65
PZM-TLM-54-24V-40K-65
CRI
90+
90+
90+
Color Temperature
2700K
3000K
4000K
For custom cut options or special orders, please contact us at: Quotes@PrizmLighting.com
